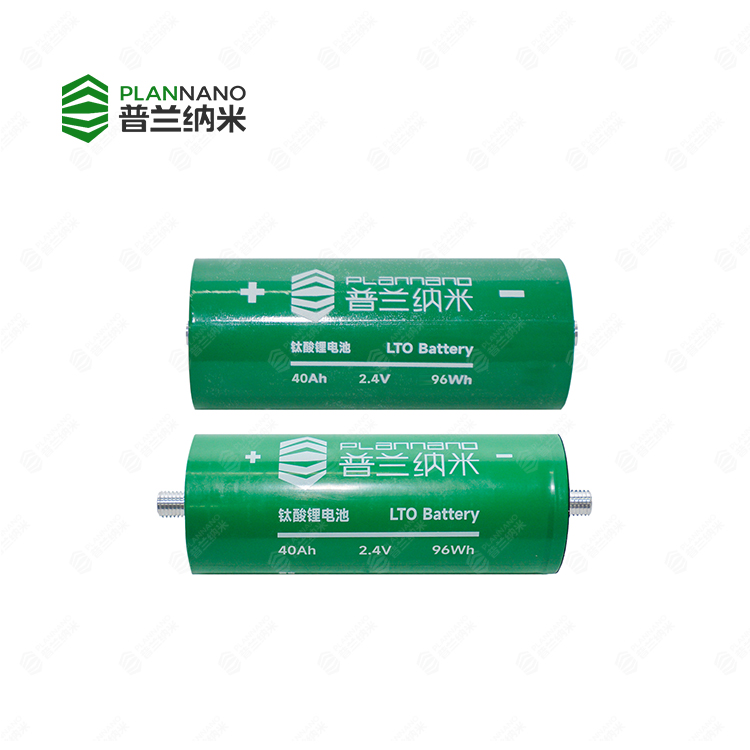

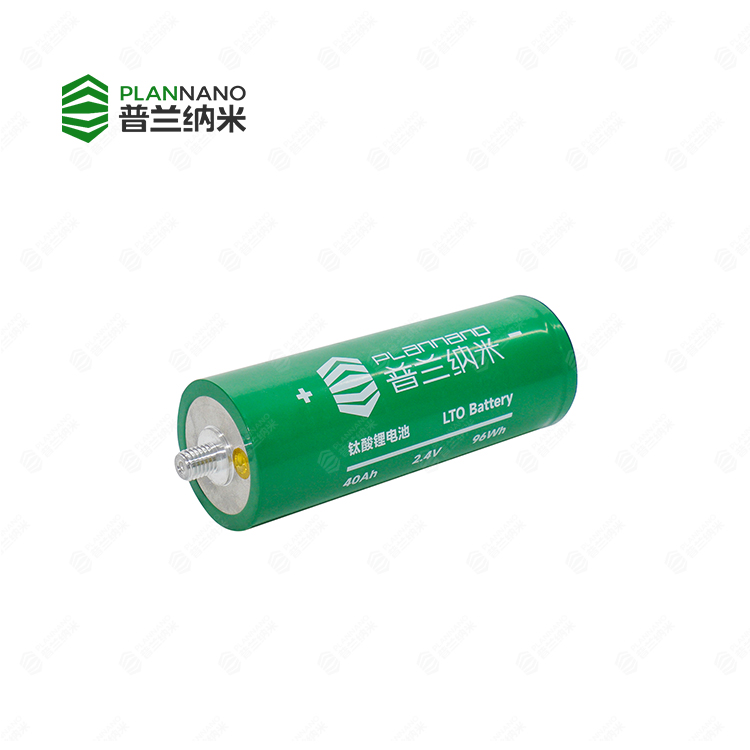

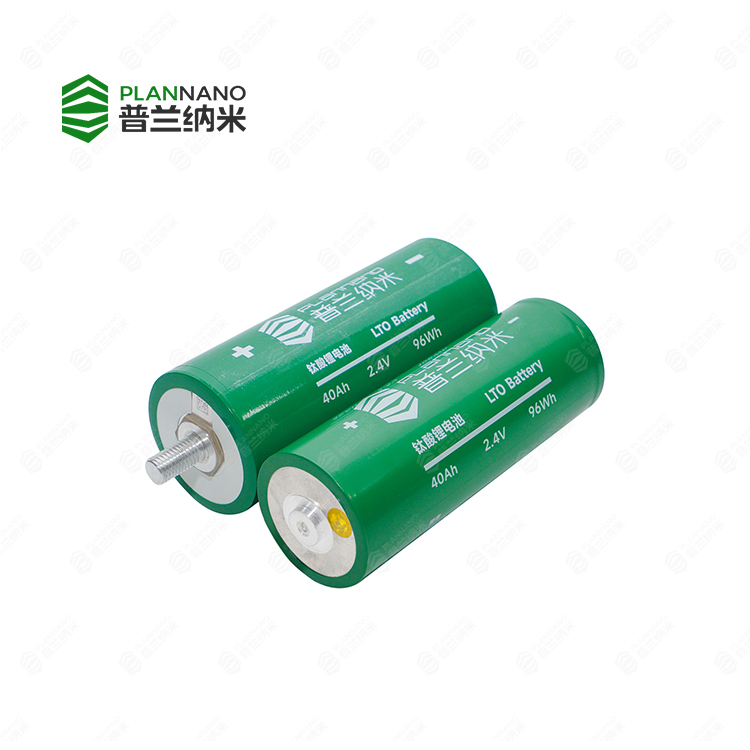

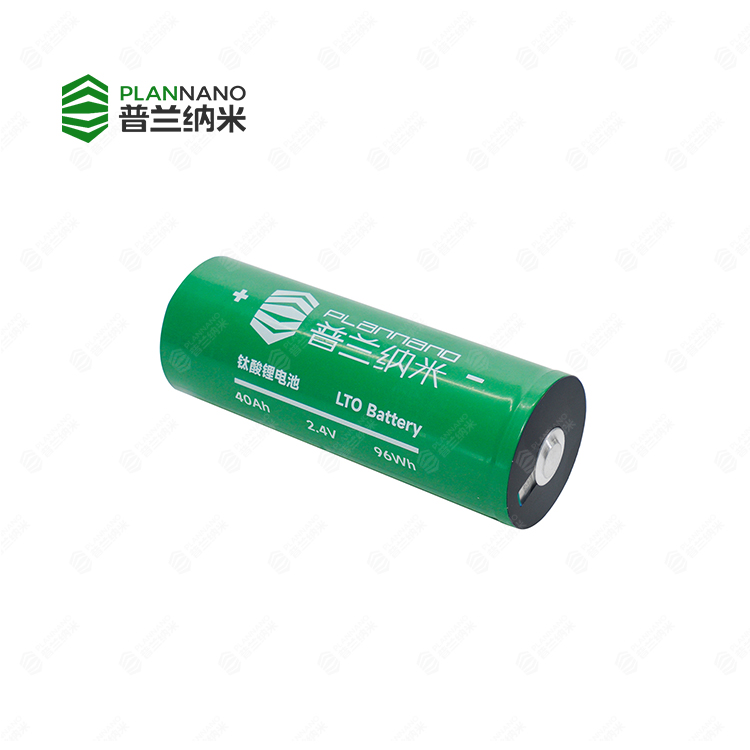

2.4V 40Ah
2.4V 40Ah
Product Advantages
Based on the LTO material technology and high energy density cell technology with independent intellectual property rights, Plannano took the lead in solving the industry problem of gas generation at high-temperature of LTO battery, and has developed products with excellent performance and cost effectiveness. Advanced technology, simple process and low cost.
 |  |  |  |  |
High safety no dendrite, good thermal stability, intrinsic safety | Long cycle life more than 20 years | High rate Fully charged in 6 min, completely discharged in 6 min | Wide Working temperature It can be charged and discharged repeatedly at -50~65℃ | Recycle Recycling rate of the cell ＞97% |
Specifications
| Product Model | PLITR60165CST(WL)B-40Ah-2.4V |
| General Specifications | |
| Nominal capacity | 40Ah |
| Nominal voltage | 2.4V |
| Nominal Energy | 96Wh |
| Energy Density | 91.4Wh/kg |
| Resistance | ≤0.3mΩ(AC, 1000Hz) |
| Charging cut-off voltage | 2.9V |
| Discharging cut-off voltage | 1.5V |
| Standard charging current | 40A |
| Standard discharging current | 40A |
| Max. Constant Charging Current | 240A |
| Max. Constant Discharging Current | 320A |
| Max. Charging Current | 480A |
| Max. Discharging Current | 800A |
| Physical Parameters | |
| Weight | 1050g±15g |
| Size (L*W*H) | 60.5*171.6mm |
| Temperature Range | |
| Storage Temperature | Less than one year：-10~25℃； Less than three months：-30~45℃ |
| Operating Temperature | Charge：-50~65℃；Discharge：-50~65℃ |
* All products can be customized according to clients’needs.
|
